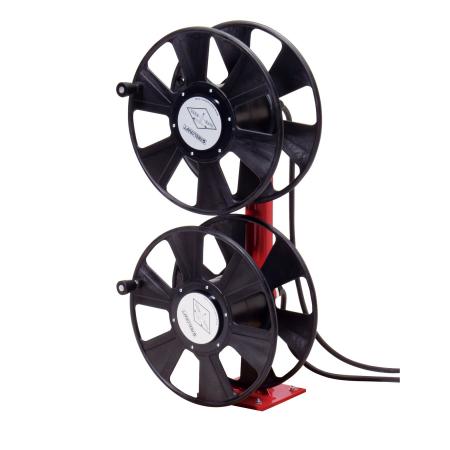

T-2464-0 – Dual Stacked 250 Amp Cable Welding Reel
The Reelcraft Safe-T-Reel Series is ideal for applications where space, weight, and flexibility are key. These reels are designed for manual winding of air/water/fuel gas hoses, electric cords, and welding cables. Versatile in function, select configurations to suit specific needs. Safe-T-Reels offer trouble-free management of large capacities of hose or cord.
- Oversized bearings – Heavy-duty shaft with tapered roller bearings offer high rigidity and spool support.
- Non-conductive spools – The glass-filled nylon spools are very strong and durable while ensuring that no conductivity occurs.
- Lightweight and strong – A substantial welded aluminum base is used to support the weight of the spool.
- Made in the USA

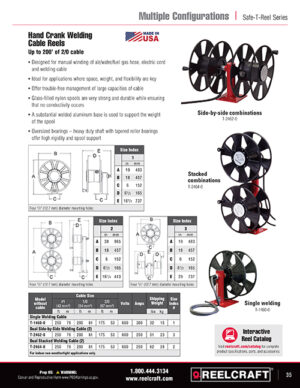

Reel Specifications and Dimensions
Additional information
| Weight | 62 lbs |
|---|---|
| Series | |
| Amps | |
| Cable Size #1 | |
| Cable Size 1/0 | |
| Cable Size 2/0 | |
| Cord/Cable Included | |
| UPC | 699567004172 |
| Carton Dimensions | 42.75" x 18" x 22.25" |
| A | 38" |
| B | 18" |
| C | 6" |
| D | 6.5" |
| E | 16.25" |

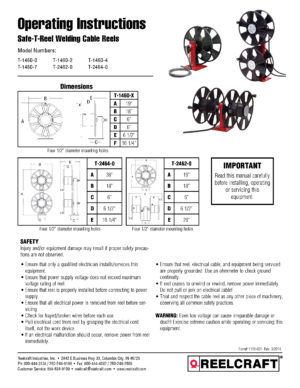

Tech Bulletins
Video
Currently no CAD drawings for this product.
