SD13000 OMP – 3/4 in. x 35 ft. Ultimate Duty Low Profile Hose Reel

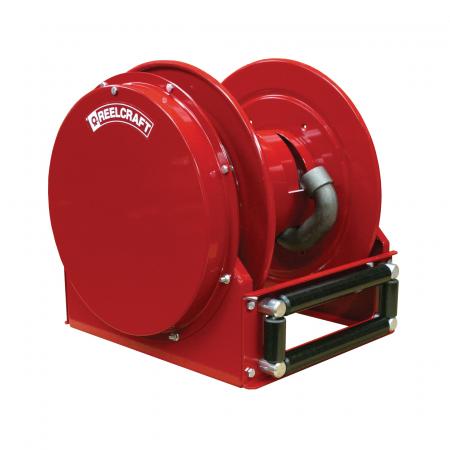

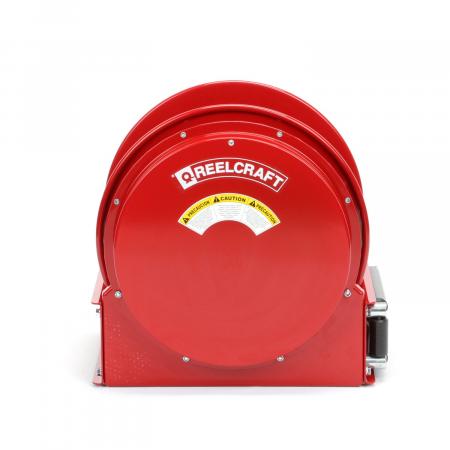

Reelcraft’s Series SD10000 hose reels are designed to facilitate larger diameter 3/4″ and 1″ hose up to 50 ft. They feature a high quality external drive spring and a heavy gauge all-bolted together frame. This is the most compact reel in its class, making it ideal for mounting in truck cabinets or other areas where space is limited.
- Robust roller guides – High impact HDPE composite roller guides have outstanding wear and corrosion resistance.
- Containerized external drive spring is easily and safely serviced.
- Ductile iron fluid path is strong and reliable.
- Oversized cast aluminum latch and ratchet combined with a stainless steel latch spring offer the longest possible life.
- Made in USA
NOTE: Reelcraft Series SD reels only ship LTL. Small parcel shipments are not available for this model.

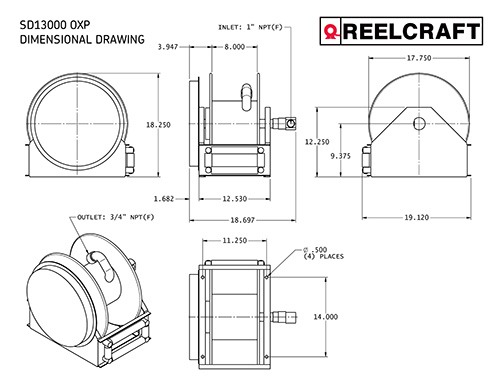

Reel Specifications and Dimensions
Additional information
| Weight | 85 lbs |
|---|---|
| Series | |
| Hose I.D. | |
| Hose O.D. | |
| Hose Length | |
| Pressure | |
| Inlet | |
| Reel Outlet | |
| Hose Included | |
| Max Temperature | |
| UPC | 699567008712 |
| Carton Dimensions | 21" x 20" x 20.5" |
| A | 18.25" |
| B | 19.125" |
| C | 14" |
| D | 11.25" |
| E | 18.75" |
| F | 8" |
Parts
Bumper Stop
Swivel Assembly
Literature and Service Manual
Tech Bulletins
FAQs
How do I increase or reduce spring tension?
To increase spring tension:
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over spool. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel spool. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
*For dual pedestal reels, you will have to remove the bumper and control handle then feed the end of the hose through the roller bracket assembly to add or remove wraps of hose from the reel drum.
Can my spring driven reel be made constant tension?
Most Reelcraft spring retractable reels can be made constant tension by removing the latching system. There are some models that may not have this capability.
Please refer to our online tech bulletins for more information on converting your reel to constant tension.
How do I install a new drive spring and set pre-turns?
We have several different types of spring-driven reels. Each requires a slightly different set of instructions. For “How-To” instructions on replacing a drive spring, please have your reel model or drive spring number available and consult customer service for instructions.
For how many wraps of “pre-tension” to put on the reel, please reference the chart below.
| Spring Number | Wraps Required |
| S400030 | 18 |
| S404230 | 13 |
| S504240 | 19 |
| S505740 | 13 |
| S503755 | 21 |
| S600050 | 21 |
| S600620 | 19 |
| S504230 | 17 |
| 602718-80 | 33 |
| 602720-100 | 27 |
| 602720-70 | 25 |
| 602721-80 | 21 |
| 602733 | 33 |
How many GPMs will I get from my hose?
GPM = gallons per minute is a function of hose diameter, hose length, supply pressure and fluid going through the hose/reel. The most common fluids, air and water, can be seen in charted data. For hydraulic oils, it is necessary to know the operating temperature, pressure and fluid viscosity.
Why will my hose reel or cord reel not retract?
Insufficient Spring Tension
Adjust the spring tension by adding wraps of hose. Pull out approximately 10 feet of hose. Hand feed the hose back up through roller bracket assembly until the loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity. Watch our “How to Adjust Spring Tension” videos on our Technical Videos page for more help.
Hose / cord reel mounted on ceiling above 16 feet
Must special order heavier gauge spring steel for drive spring to overcome weight of hose / cord extending from reel. Control handle weight must also be considered. Contact Reelcraft for further information.
Latch mechanism engaged with drive spring coiled to solid height
U-bolt hose clamps on sheave assembly not positioned correctly.
Hose / cord fully extended will not retract
Latch mechanism engaged with drive spring is coiled to solid height. U-bolt hose clamps on sheave assembly are not positioned correctly.
Product supply to reel, rigid, plumbed in
If a flexible connecting hose is not used between hose reel inlet and hard plumbing, you stand the chance of causing excessive bind to main shaft and hub bearings causing reel not to retract. This will also void the warranty.
Reel mounted on uneven surface
Bolting the reel down to an uneven surface will distort the side frames causing a bind on main support shafts and restricting smooth retraction of the hose.
Wrong guide arm position
If the guide arm is in side wind position for ceiling mounted reels, the hose / cord is bending at a 90° angle over roller bracket assembly. This can cause excessive loss of spring tension. Adjust the guide arm to coincide with how the hose / cord reel is actually mounted. U-bolt clamps may also need to be adjusted.
Broken main spring, broken spring arbor, corrosion on shaft and hub
Replace broken part with new. For corrosion: disassemble reel and remove corrosion, lubricate and reassemble.
Why is fluid or air leaking from my swivel?
O-ring worn out or wrong O-ring for material being handled
Replace O-rings with O-ring kit or replace with correct rings for material being handled.
Swivel may be loose or not enough pipe thread sealant on shaft threads
Remove swivel and check threads ensuring they are in good condition. Reapply thread sealant and install swivel onto reel ensuring good thread engagement.
Why will my reel not latch?
If your reel will not latch, it could mean the latch spring is broken or the latch pawl or latch plate is bent. The broken or bent part(s) will need to be replaced.
Refer to our Service Manuals page for assistance finding your parts.
