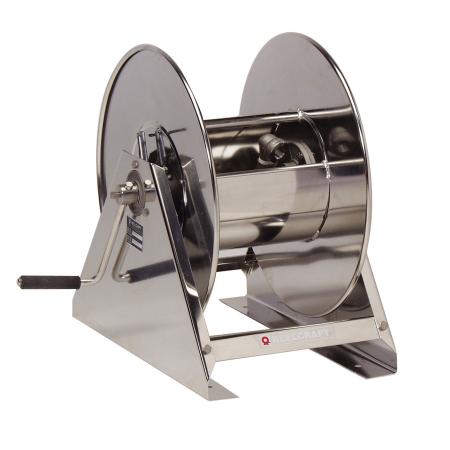

HS19000 M – 3/4 in. x 75 ft. Medium Duty Stainless Steel Hand Crank Hose Reel
Reelcraft’s stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer, and industrial-solvent handling. Also suitable for coastal, offshore, and on-board ships in marine applications where the harsh environment of salt water spray requires the use of stainless steel hose reels. Swivel includes Viton O-rings. Note: Reel hubs are made from aluminum.
- Quality finish and corrosion resistant – Stainless steel components offer maximum protection from premature corrosion.
- Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
- Easy to add tension – The T-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reel.
- Convenient adjustment of hand crank handle – the handle can easily be rotated out of the way by loosening the set screw.

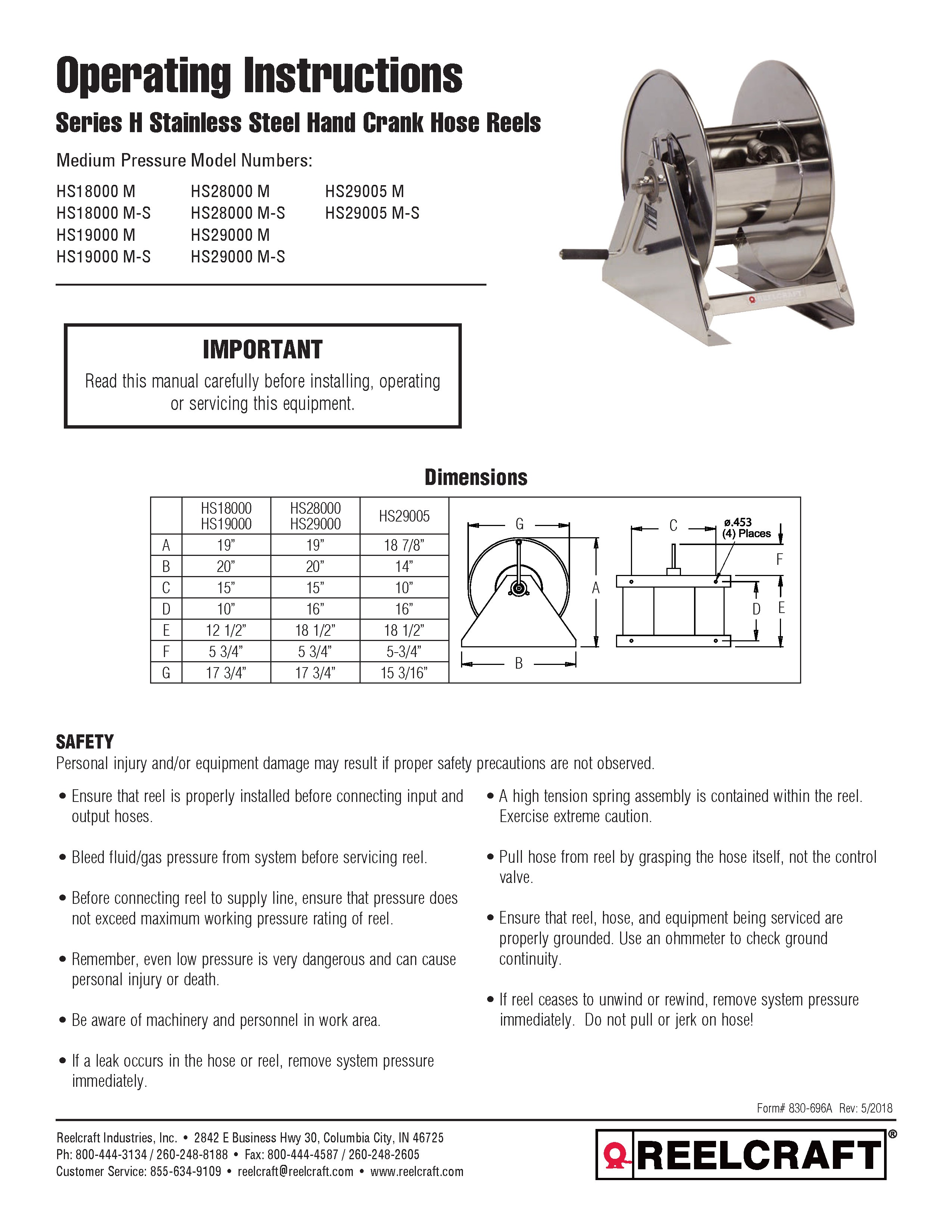

Reel Specifications and Dimensions
Additional information
| Weight | 38 lbs |
|---|---|
| Series | |
| Hose I.D. | |
| Hose O.D. | |
| Hose Length | |
| Pressure | |
| Inlet | |
| Reel Outlet | |
| Hose Included | |
| Max Temperature | |
| UPC | 699567003588 |
| Carton Dimensions | 21" x 20" x 20.5" |
| A | 19" |
| B | 20" |
| C | 15" |
| D | 10" |
| E | 12.5" |
| F | 5.75" |
| G | 17.75" |
Fluid Path Materials
| Internal Fluid Path | Stainless Steel |
| Swivel Assembly | Stainless Steel |
| Swivel Seal | FKM |
Tech Bulletins
FAQs
How many GPMs will I get from my hose?
GPM = gallons per minute is a function of hose diameter, hose length, supply pressure and fluid going through the hose/reel. The most common fluids, air and water, can be seen in charted data. For hydraulic oils, it is necessary to know the operating temperature, pressure and fluid viscosity.
Why is fluid or air leaking from my swivel?
O-ring worn out or wrong O-ring for material being handled
Replace O-rings with O-ring kit or replace with correct rings for material being handled.
Swivel may be loose or not enough pipe thread sealant on shaft threads
Remove swivel and check threads ensuring they are in good condition. Reapply thread sealant and install swivel onto reel ensuring good thread engagement.
