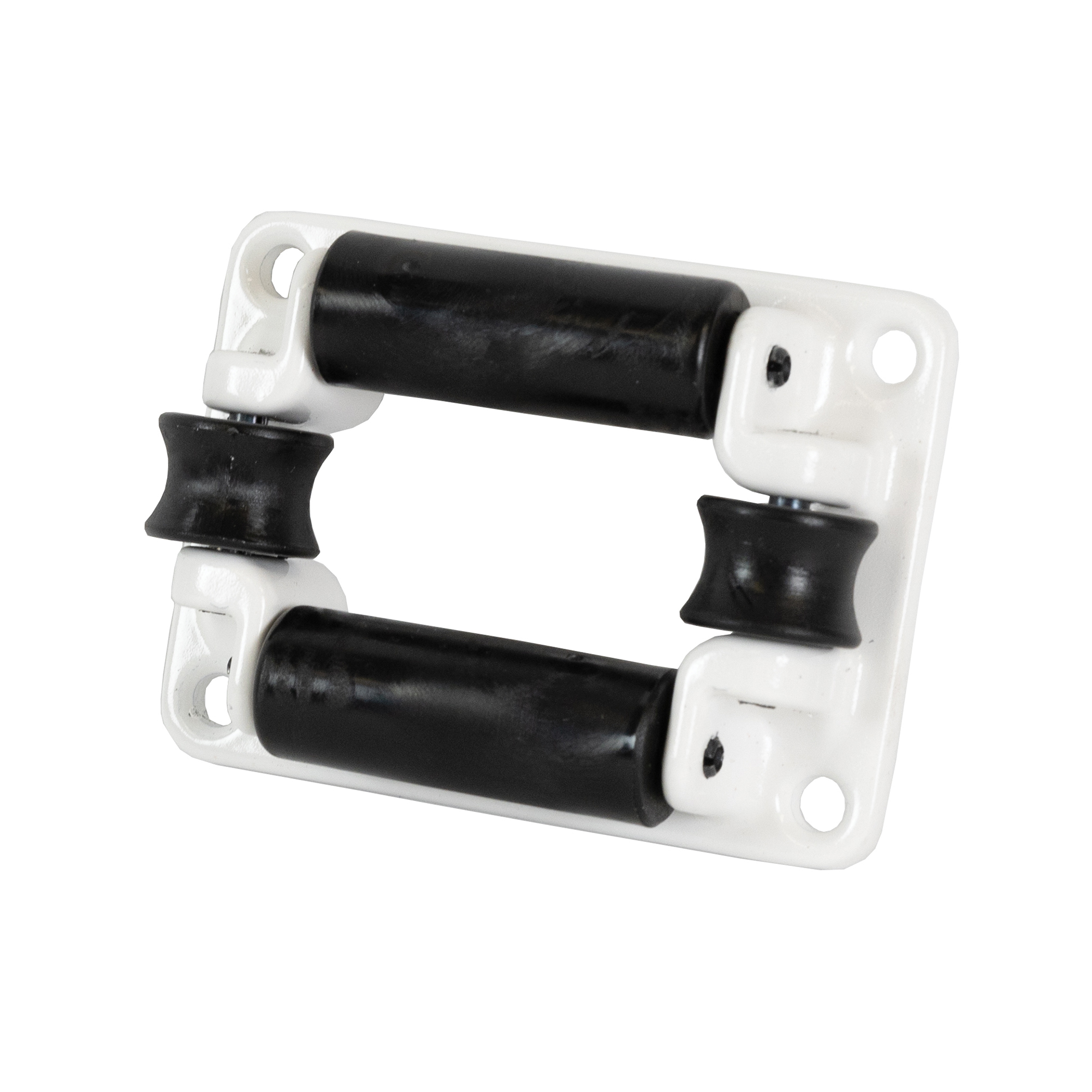

HR1145 – Roller Hose Guide Assembly
The four-way roller guide assemblies are for use with reels on cabinet door openings and for similar locations where sharp edges may cut or damage the hose. The four-way design permits pulling or retracting hose at any angle.
| Part Number | HR1145 |
| Weight | 0.34 lbs |
| Roller Material | Nylon |
| Direction | Multi Position |
| Spool Size | Varies |
| Hose O.D. | 0.603" - 0.906" |
| UPC | 699567003953 |
| A | 2" |
| B | 1" |
| C | 3.75" |
| D | 2.75" |
| F | 3.125" |
| E | 2.125" |
