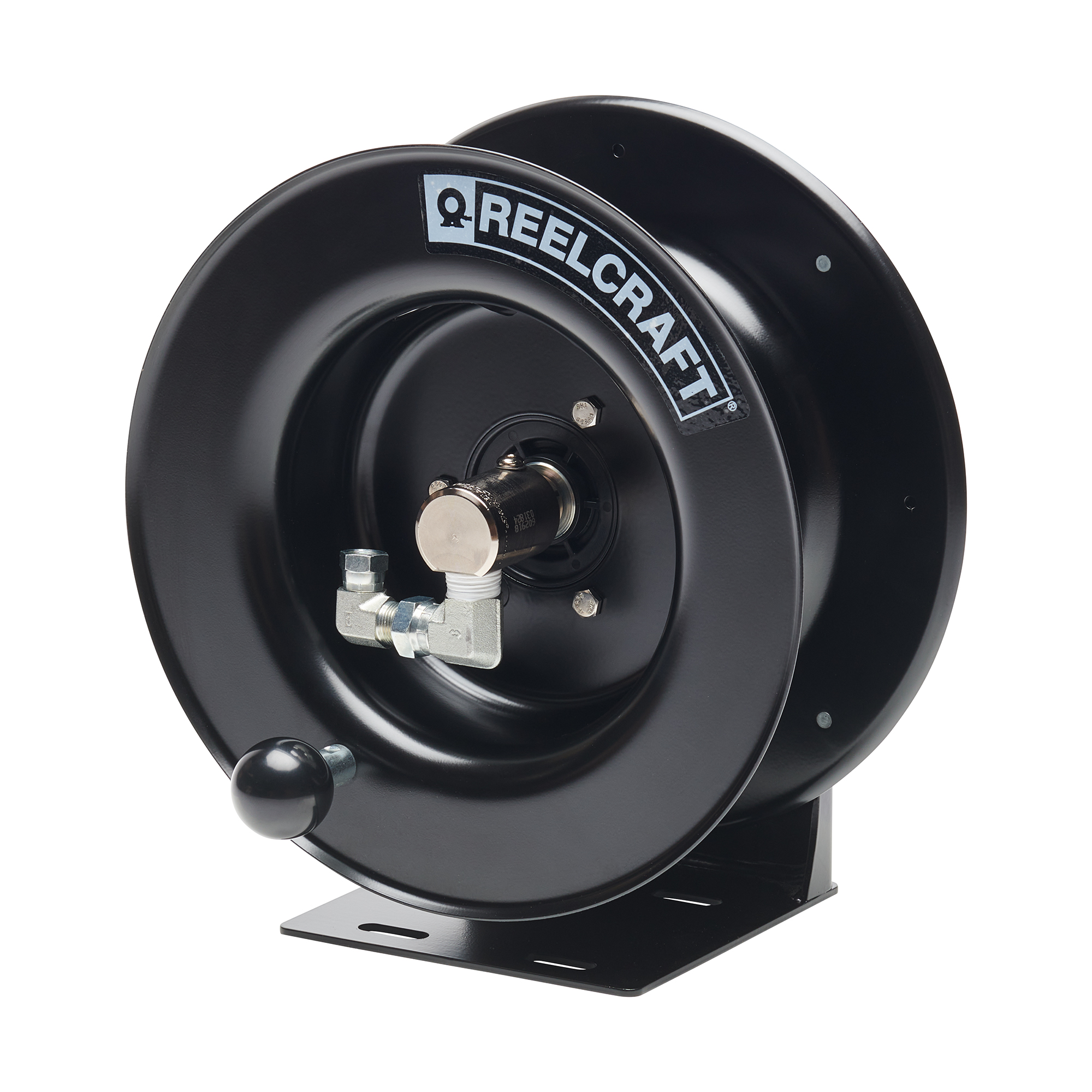

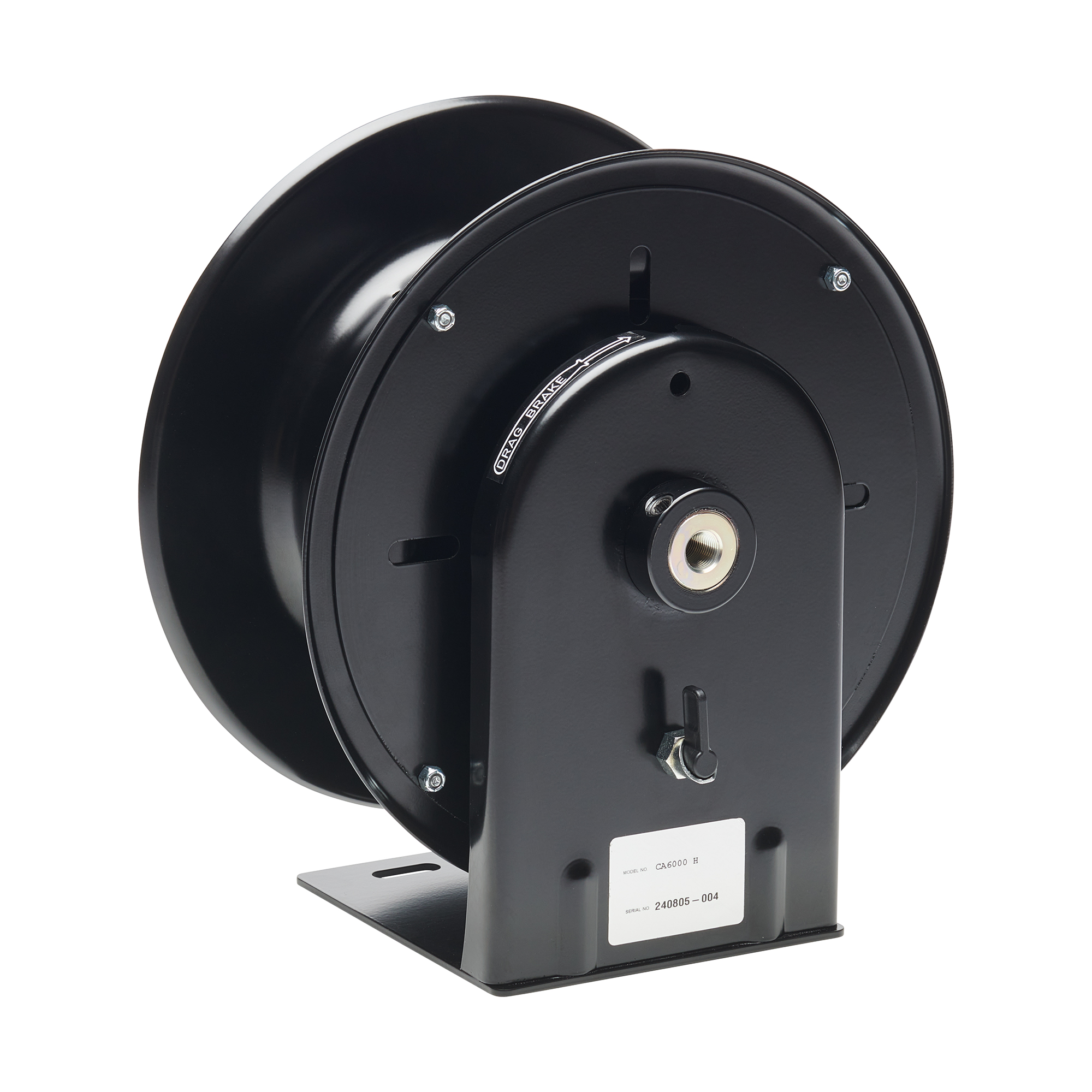

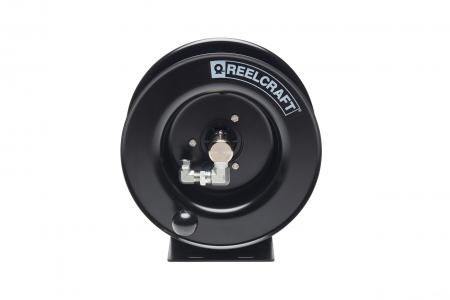

CA6000 H – 3/8 in. x 50 ft. Premium Duty Hand Crank Hose Reel
Reelcraft CA6000 H pressure wash hose reel is designed for applications that require longer lengths of water hose. Reels in this family benefit from a tough, corrosion-resistant powder coat paint. All reels feature an adjustable friction brake to prevent de-spooling when the reel is not in use.
- Compact design and quality steel construction with a durable black powder coat finish
- Ergonomic locking pin – Toggle the lock to disengage; when the hose is recoiled, lock it into position so the spool stays in place
- Ideal for agricultural, marine, cleaning equipment, and pressure washing
- Easy to operate – The rotating handle allows the hose to be retrieved with ease
- Easy to mount – Multiple mounting options with the slotted baseplate for ease of installation
- Made in the USA

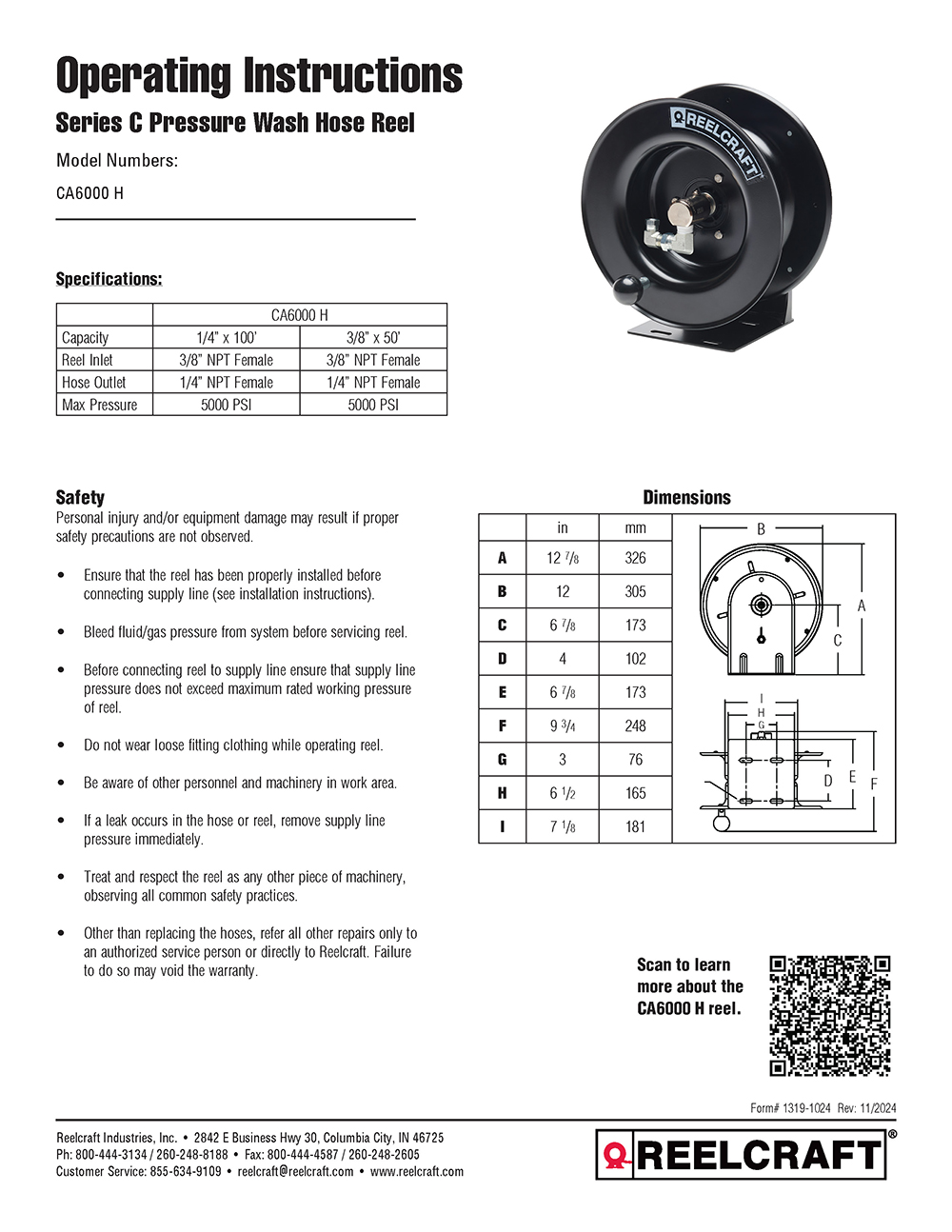

Reel Specifications and Dimensions
Additional information
| Weight | 18 lbs |
|---|---|
| Series | |
| Hose I.D. | |
| Hose O.D. | |
| Hose Length | |
| Pressure | |
| Inlet | |
| Reel Outlet | |
| Hose Included | |
| Max Temperature | |
| UPC | 699567031246 |
| A | 12.875" |
| B | 12" |
| C | 6.875" |
| D | 4" |
| E | 6.875" |
| F | 9.75" |
| G | 3" |
| H | 6.5" |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Steel |
| Swivel Seal | Aflas |
Tech Bulletins
FAQs
How many GPMs will I get from my hose?
GPM = gallons per minute is a function of hose diameter, hose length, supply pressure and fluid going through the hose/reel. The most common fluids, air and water, can be seen in charted data. For hydraulic oils, it is necessary to know the operating temperature, pressure and fluid viscosity.
Why is fluid or air leaking from my swivel?
O-ring worn out or wrong O-ring for material being handled
Replace O-rings with O-ring kit or replace with correct rings for material being handled.
Swivel may be loose or not enough pipe thread sealant on shaft threads
Remove swivel and check threads ensuring they are in good condition. Reapply thread sealant and install swivel onto reel ensuring good thread engagement.
